Fordray Product Information

Category: AM/FM Radio

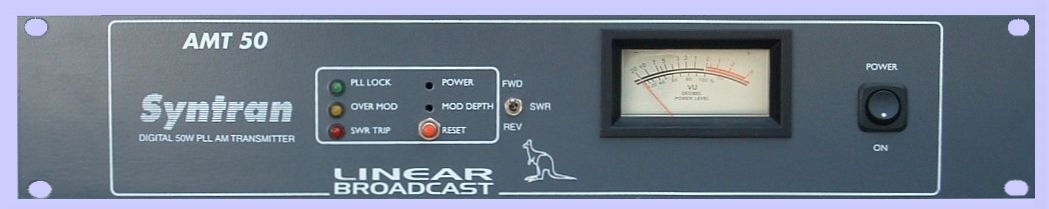

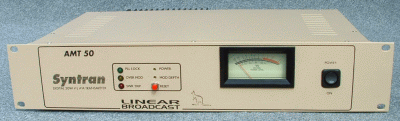

AMT50

50 Watt AM Transmitter



        The Linear Broadcast AM Transmitter was designed to fill the needs of the broadcaster requiring high performance and reliability at a cost effective price. The AMT is self-contained in a 2RU rack case and provides fully adjustable power output of up to 50 Watts rest carrier. It is a power efficient, reliable design.
        The AMT50 has metering of forward and reflected RF power and is protected against excessive reflected power. This unit also has audio processing which maintains the modulation level at a consistently high but safe level, keeping noise and distortion low.



SPECIFICATIONS: AMT50

Audio Input:


Output Power:

Controls:

Frequency Range:

Carrier Freq. Stability:

Spurious:

Frequency Response:

Total Distortion:



Signal to Noise:

Dimensions:

Weight:

Power Supply:

Finish:



Mono (XLR) (to order)
-10 to +12dBm, 600W, balanced

adjustable up to 50W, 50
W, 'N' connector

Modulation depth, RF output power

550 to 1701KHz in 9 kHz steps

0.0005%

< -65dBc at 50W output, in and out of band

30Hz to 9kHz 1db


<0.8% at 90% modulation (400Hz)
    ( measured with rest carrier=50watts )

<1.2% at 40% modulation (1KHz)
    (measured with rest carrier= 10watts )

> 65dB

2RU rack case x 400mm deep

7kg

220-240V AC, 50Hz, 160VA, IEC 3 pin socket

Powdercoat
