Fordray Product Information

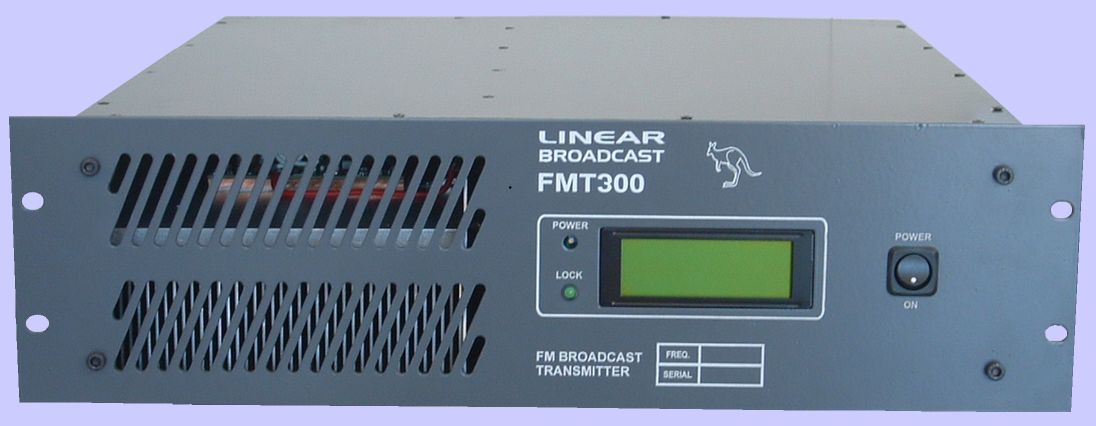

The Linear Broadcast FMT300 is housed in a 3RU rack case and provides  power output of  300 Watts. Metering of forward and reflected RF power, supply  voltages ,modulation level and temperature included on the front panel LCD meter.  A microcontroller based protection system guards the transmitter against antenna faults and high temperature. This unit is designed with efficiency in mind to reduce running costs and increase reliability through lower operating temperature. These goals are achieved using rugged MOSFET output stages and conservatively designed switch-mode power supplies.

Output Power:                        300W, 50W, 'N' connector


Metering:                                  Forward and Reflected RF power, Temperature,
                                                    Supply voltages, Modulation level

Frequency
Range:                                      87 to 108MHz


Spurious:                                 < -65dBc at 300W output, in and out of band

Dimensions:                            3RU rack case x 480mm deep

Weight:                                      9kg

Power Supply:                        220-250V AC, 50Hz, 600VA, IEC 3 pin socket

Finish:                                              Powdercoat
