Fordray Product Information

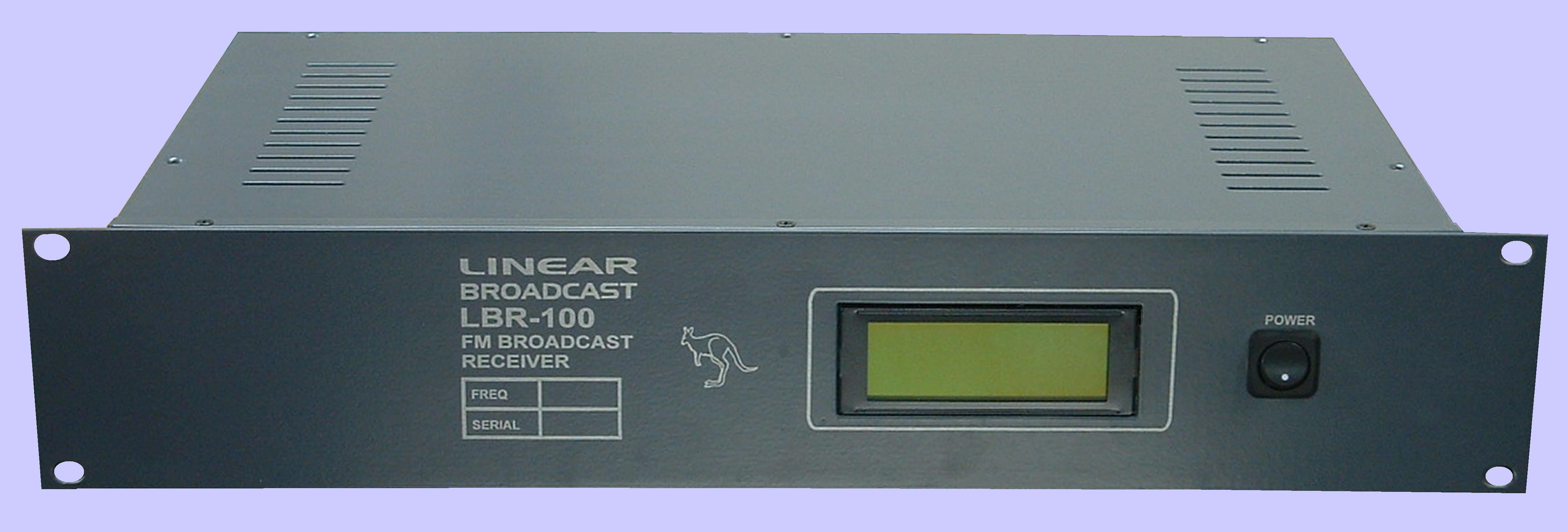

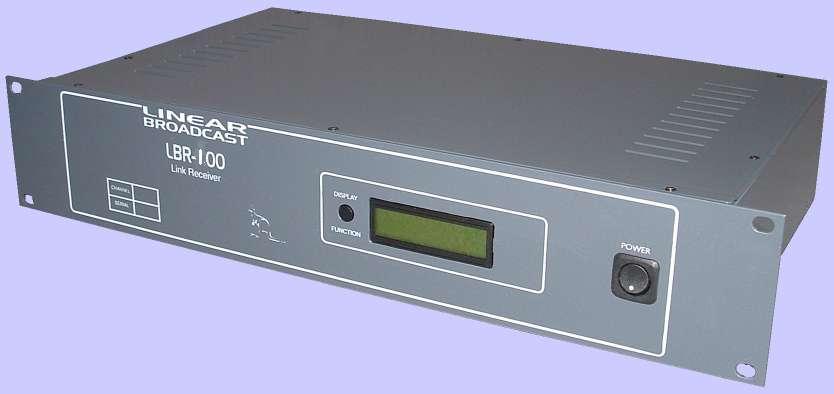

The Linear Broadcast LBR100 is designed for off-air rebroadcast situations where strong unwanted signals will be present. It has a selective, overload resistant  front end. The LBR100 Receiver provides a multiplexed output and de-emphasised 600 Ohm balanced output and is fitted with signal strength and VU metering and internal mute and level controls. The LBR100 may be tuned to any frequency within the FM broadcast band via DIP switches.

Input Impedance

50W 'N' type connector

Frequency Range

87 to 108MHz

Output Levels:

 - Mono

+4dBm, bal. 600W

 - MPX

4V p/p

De-emphasis:

 - Mono

50mS

 - MPX

Flat

Frequency Response:

 - Mono

30Hz to 15kHz: ±1dB

 - MPX

30Hz to 65kHz: ±1dB

Distortion

<0.2% @ 75KHz deviation

Image Rejection

>63dB

Mute Threshold

3mV

Signal to Noise

>69dB

Power Supply

240V AC 50Hz ±10% 20VA
