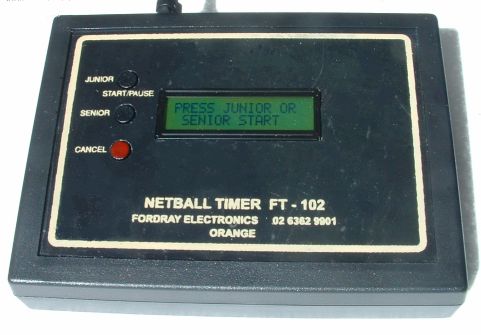

FT102 SPORTS TIMER

The FT-102 is a timer unit designed to connect through a public address system or audio amplifier and speaker to produce horn or siren sounds at predetermined intervals. This unit can also be supplied with a 12 volt horn output or relay contacts instead of the audio output. A sequence is started by pressing the START/PAUSE button and once running, can be paused by pressing the same button at any time. The CANCEL button will terminate the current timing sequence

The timings in minutes on the netball unit are:

 JUNIOR :    10 , 3 , 10 , 5 , 10 , 3 , 10

SENIOR :     15 , 3 , 15 , 5 , 15 , 3 , 15

Different timings can be programmed to suit your requirements for different sports and competition levels.

      The horn is sounded at the beginning of the timing sequence and at the end of each period. The display on the front of the timer shows the current period and time elapsed, and also indicates when the horn is sounding.

     In the standard unit, each sounding of the horn lasts for 2 seconds, but this can be changed before shipping to suit your requirements.

      The unit will run on a power supply of 9 to 18 volts and is supplied with a plugpack for mains operation.
