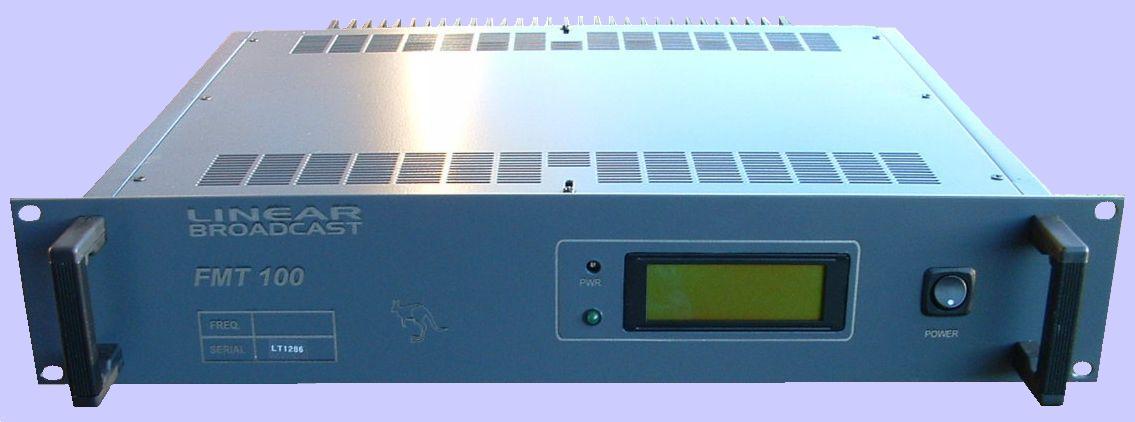

The Linear Broadcast FM Transmitter was designed to fill the needs of the broadcaster requiring high performance and reliability at a cost effective price. The FMT100 is self-contained in a 2RU rack case and provides fully adjustable power output of up to 100 Watts and a user-programmable Phase Locked Loop frequency via simple and accessible rotary switches. Mostly convection cooling is used, resulting in a product that will operate for long periods with no maintenance. A stereo encoder can be fitted inside this transmitter if stereo broadcast is required.

Audio Input:


Output Power:

Controls:


Frequency Range:

Carrier Freq. Stability:

PLL Phase Jitter:

Spurious:

Pre-Emphasis:

Frequency Response:

Total Distortion:

Signal to Noise:

Dimensions:

Weight:

Power Supply:

Finish:

Mono (RCA)
Mono (XLR) (to order)

 200mV to 1Volt
-10 to +12dBm, 600W, balanced

> 100W, 50W, 'N' connector

Mono audio Input Level, RF output power, frequency rotary switches for frequency

87 to 108MHz in 100kHz steps

0.0005%

0.001%

< -68dBc at 100W output, in and out of band

Flat / 50µS

30Hz to 65kHz, ±1dB MPX
30Hz to 15kHz ±1dB mono

<0.04%

> 68dB

2RU rack case x 400mm deep

10kg

220-240V AC, 50Hz, 220VA, IEC 3 pin socket

Powdercoat
