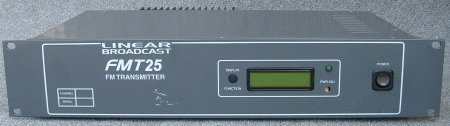

FMT25 Mono/Stereo
25 Watt FM Transmitter

The Linear Broadcast FMT25 FM Transmitter is designed to fill the needs of the narrowcaster requiring high performance and reliability at a cost effective price. The FMT25 is self-contained in a 2RU rack case and provide fully adjustable power output  up to 25 Watts and a user-programmable Phase Locked Loop frequency via simple and accessible rotary switches.  It has a multi-function LCD meter which allows metering of forward and reverse power, audio levels and power supply current and voltage. As with nearly all our FM transmitters, a stereo encoder can be added inside the FMT25 if stereo broadcast is required and an external encoder is not being used.

Audio Input:

Mono (RCA)
MPX (BNC)

200mV to 1V, 47kW unbalanced
1V to 4V p/p 10kW

Output Power:

0.1 to 25W

Controls:

Audio input level, RF output power, freq.  4 rotary switches for frequency

Frequency Range:

87 to 108MHz in 100kHz steps

Carrier Freq. Stability:

0.0005%

PLL Phase Jitter:

0.001%

Spurious:

< -65dBc (Mono & MPX)

Pre-Emphasis:

Flat / 50µS

Frequency Response:

Mono
MPX

30Hz to 15kHz
30Hz to 65kHz

Total Distortion:

<0.04%

Signal to Noise:

> 67dB (Mono & MPX)

Dimensions:

2RU rack case x 250mm deep

Weight:

6kg

Power Supply:

240V AC, 50Hz, 60VA, IEC 3 pin socket
