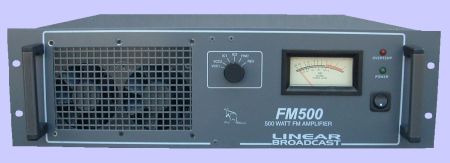

The Linear Broadcast FM500 is housed in a 3RU rack case and provides  power output of  500 Watts with drive of only 5 watts. Metering of forward and reflected RF power and supply current and voltages is included on the front panel.     This unit is designed with efficiency in mind to reduce running costs and increase reliability through lower operating temperature. These goals are achieved using rugged MOSFET output stages and conservatively designed switch-mode power supplies.

RF input:                                          5 watts into N connector, 50 ohm

Output Power:                                500W, 50W, 'N' connector


Metering:                                         Forward and Reflected RF power,
                                                           Supply voltages and currents

Frequency
Range:                                             87 to 108MHz


Spurious:                                        < -65dBc at 500W output, in and out of band

Dimensions:                                   3RU rack case x 400mm deep

Weight:                                             20kg

Power Supply:                               220-250V AC, 50Hz, 1000VA, IEC 3 pin socket

Finish:                                              Powdercoat
